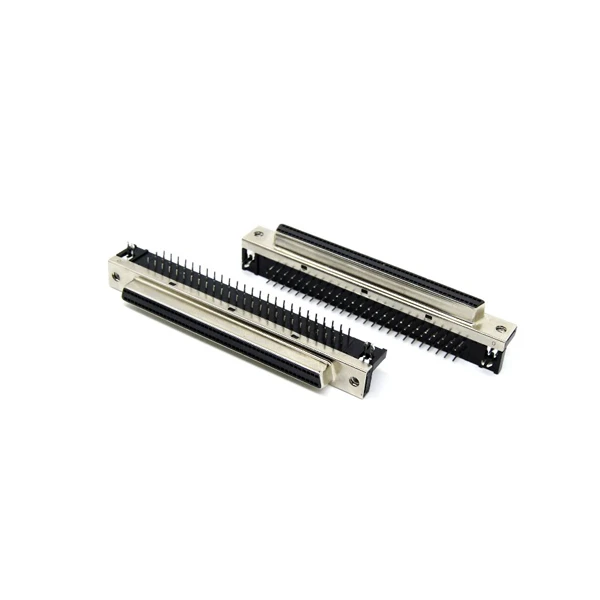

Pib lub qhov rooj SCSI DB 100 poj niam txiv neej nrog cov hlua rau sab nraud, qhov no yog 90 degree 100 tus pin poj niam txuas rau ob kab, ib tug nyob saum toj. Sab saum toj kab muaj 50 pins thiab qhov qis tshaj muaj 50 pins. Feem ntau siv rau cov khoom siv PCB, xws li DIN-Mount Screw Terminal Vaj Huam Sib Luag thiab I / O Connector Thaiv.
Khoom Khoom Ntawm Txoj Cai Ntawm Txoj Cai 100-pin SCSI II poj niam txiv neej nrog clip:
Yam khoom | DB 100 PIN SCSI poj niam txiv neej nrog clip |
Hom | Pib |
Yam khoom | SCSI cable thiab connector |
Tsis Tau | 100 tus pin |
Hu Rau Hom | 1.27 hli Headers right angle Mount type connector |
Xaiv | Ntsia bracket |
Threaded Finishes | M2.6 |
Hu Xov Tooj | Kub Xuas Plating |
MOQ | 1 PCS |
Qauv | Dawb |
Pob | Hnab |
Warranty | Ob xyoos |
Cov kev ntsuas ntawm 90 degree SCSI DB100 tus pin poj niam txuas nrog clip :
| Connector Khoom | |
Vaj Tse | Yas Thermoplastic PBT UL94V-0, Dub |
Hu rau | Tooj liab hlau phaj nyaj |
Pem Hauv Ntej Plhaub | Hlau, Nickel Plated Over Copper |
Bracket | Zinc Alloy, Nickel Plated Over Copper |
Cov Khoom Siv Hluav Taws Xob | |
Tiv tauj Cov Ntaus Nqi Tshaj | 0.5 Amp |
Dielectric Hnav Zoo Tshaj Plaws | 150V AC |
Insulation Resistance | 500MΩ / Min |
Hu rau Kev Tiv Thaiv | 35mΩ / Max |
Cov Kub Ua Haujlwm | -55 ° C ~ + 85 ° C |
Daim ntawv thov ntawm txoj cai kaum sab xis DB100 tus pin scsi ii connector:
1) cov tswj kev txawj ntse, serial PCIx daim npav
2) Cov tshuab luam ntawv, Cov PCs thiab Macs thiab ntau lub tshuab hluav taws xob
3) I / O Connector Thaiv, Pawg Cov Khoom Pab Pawg
4) Tej lub computer thiab cov ntse ntse, cov tshuab luam ntawv, cov nyuaj disks, CD ROM tsav
Cov Lus Nug:
Lus Nug: Kuv puas them nyiaj paj rau cov txiv ua khoom noj, thaum tshuav tag nrho cov nyiaj seem tom qab tau txais khoom muag thawj zaug?
A: Thov txim, peb tuaj yeem txais qhov no tom qab ob peb txoj kev koom tes.
Q: Koj puas tuaj yeem npaj duab rau Kev Pom Zoo?
A: Yog, kev kos kom paub tseeb ntawm ib leeg, kos npe rau ntawm daim duab yuav zoo dua.
Q: Yuav ua li cas txog kev muag khoom?
A: Qhia, Lub nkoj xa khoom noj thiab Cov Khoom Hiav Txwv tsis pub tuaj koom.
Q: Ntev npaum li cas yog koj qhov khoom tiv thaiv?
A: ob xyoos.
Q: Thaum twg kuv tuaj yeem tau txais cov nqi?
A: Tsis pub dhau 24 teev txhua zaus. Yog tias ceev ceev, thov hu rau peb ncaj qha.
Cim npe nrov: txoj cai angle SCSI HD 100 poj niam connector, lwm tus neeg, manufacturers, hoobkas, customized
